H. Cross Company supplies 15% platinum clad by weight, molybdenum in both wire and flat ribbon. It is used as the welding interface between the etched molybdenum, the lamp electrode and lead wire.
The platinum clad molybdenum is manufactured under the same stringent controls as the etched molybdenum and is more economical as a welding flux than the pure platinum used for years.
Sizes available
| Wire | Diameter | .005″ to .050″ |
| Ribbon | Thickness | .0007″ to .007″ |
| Width | .020″ to .125″ |
Standard Tolerances
| Thickness Inches | Tolerance Inches* | Width Inches | Tolerance Inches* |
| .0005” to .0019” | +/- .00005” | .006” to .0109” | +/- .0005” |
| .002” to .0029” | +/- .0001” | .011” to .0209” | +/- .001” |
| .003” to .0039” | +/- .00015” | .021” to .0309” | +/- .0015” |
| .004” to .0049” | +/- .0002” | .031” to .0609” | +/- .002” |
| .005” to .0069” | +/- .00025” | .061” to .0999” | +/- .003” |
| .007” to .0109” | +/- .00035” | .100” to .125” | +/- .005” |
| .011” to .0309” | +/- .0005” |
* Closer tolerances can be maintained if required for your applications
If you require a size outside of the normally available ranges Contact Us and we will be glad to accommodate your needs if possible.

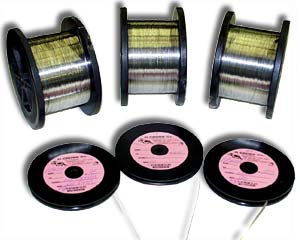

Platinum clad molybdenum ribbon is supplied on non-returnable spools of H. Cross design. Wire is spooled on returnable spools to suit customer requirements. The spools are sealed in polyethylene bags that are boxed and labeled for shipment.
H. Cross Company has been a full service company serving the quartz seal lamp industry including Halogen, Metal Halide, Vapor and Short Arc bulbs since 1950.
